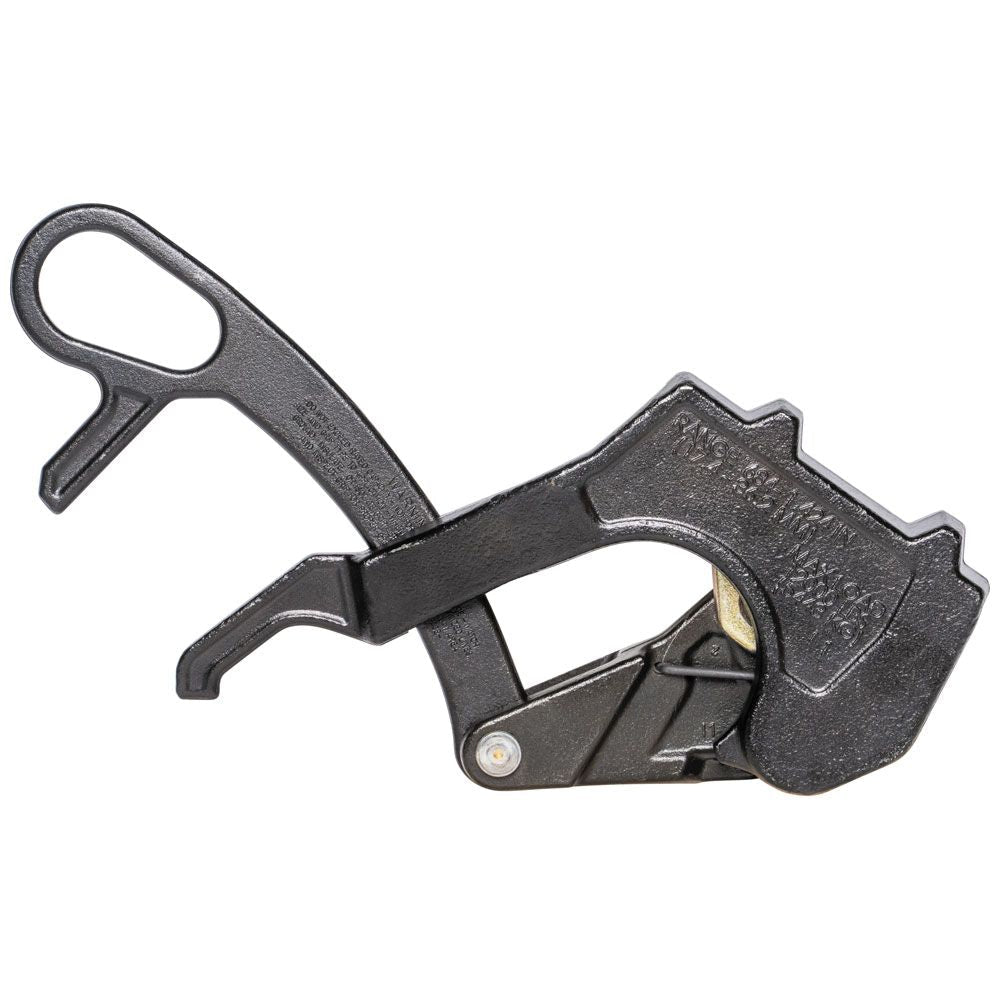

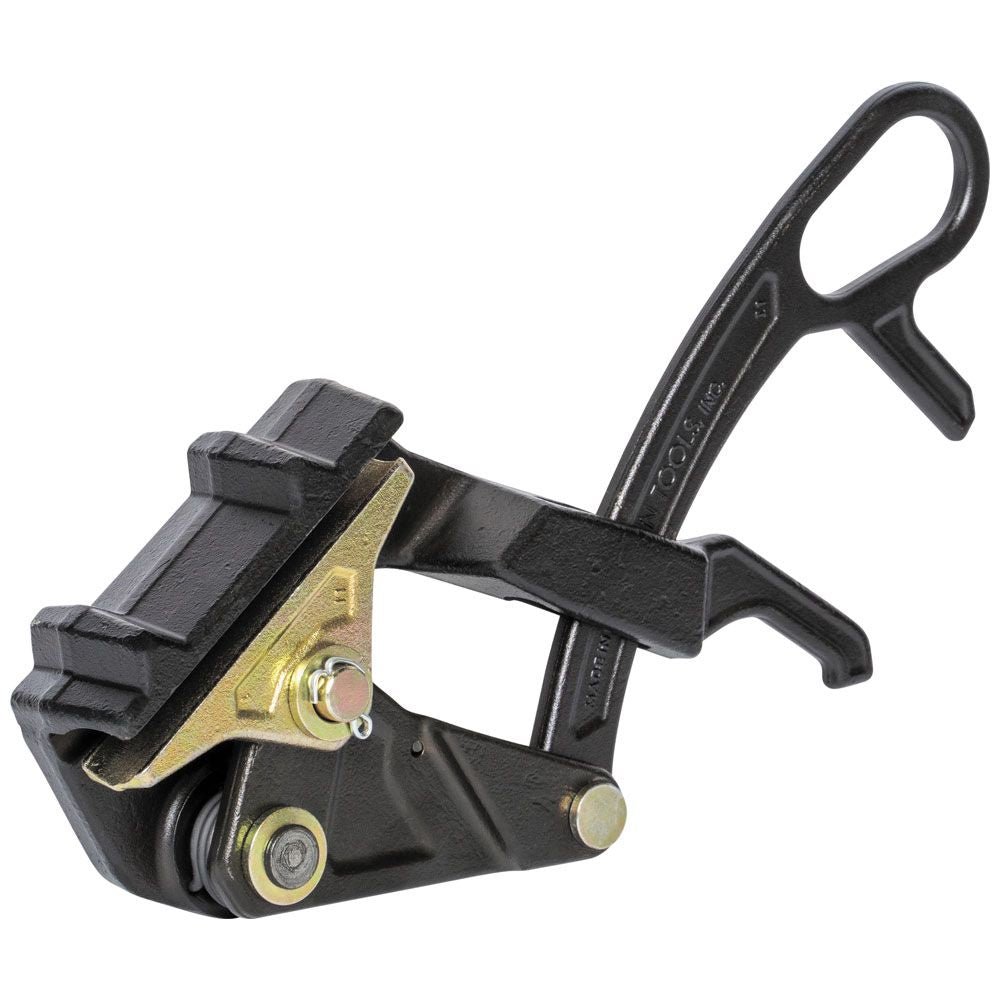

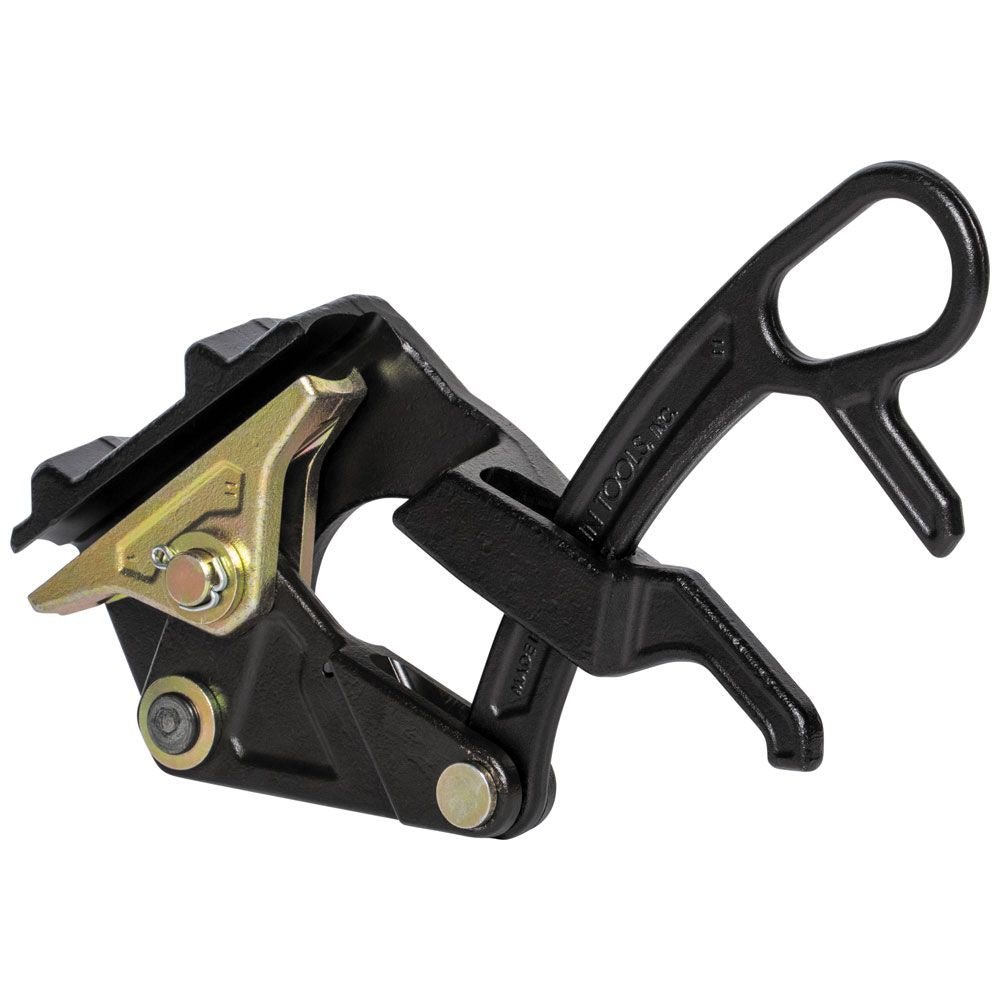

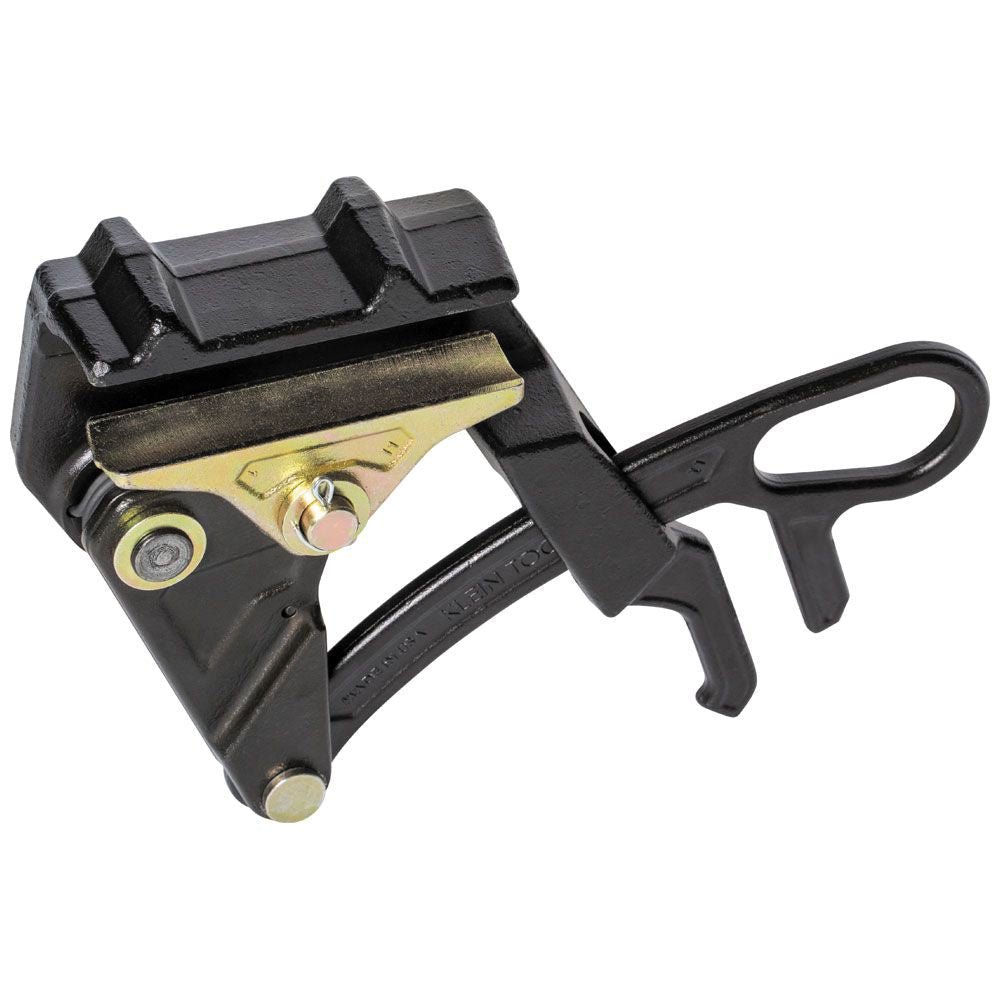

Wide Range Transmission Grip - 16499
$465.26
Skip to product information

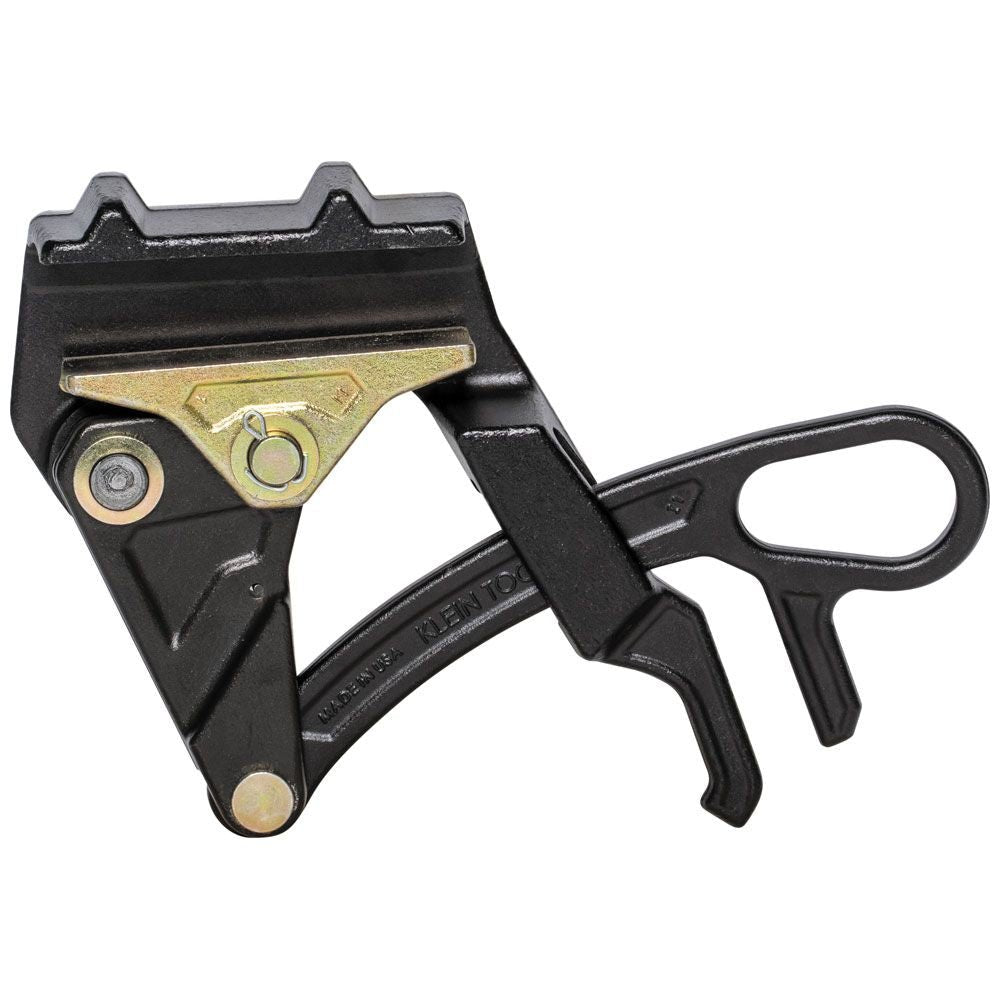

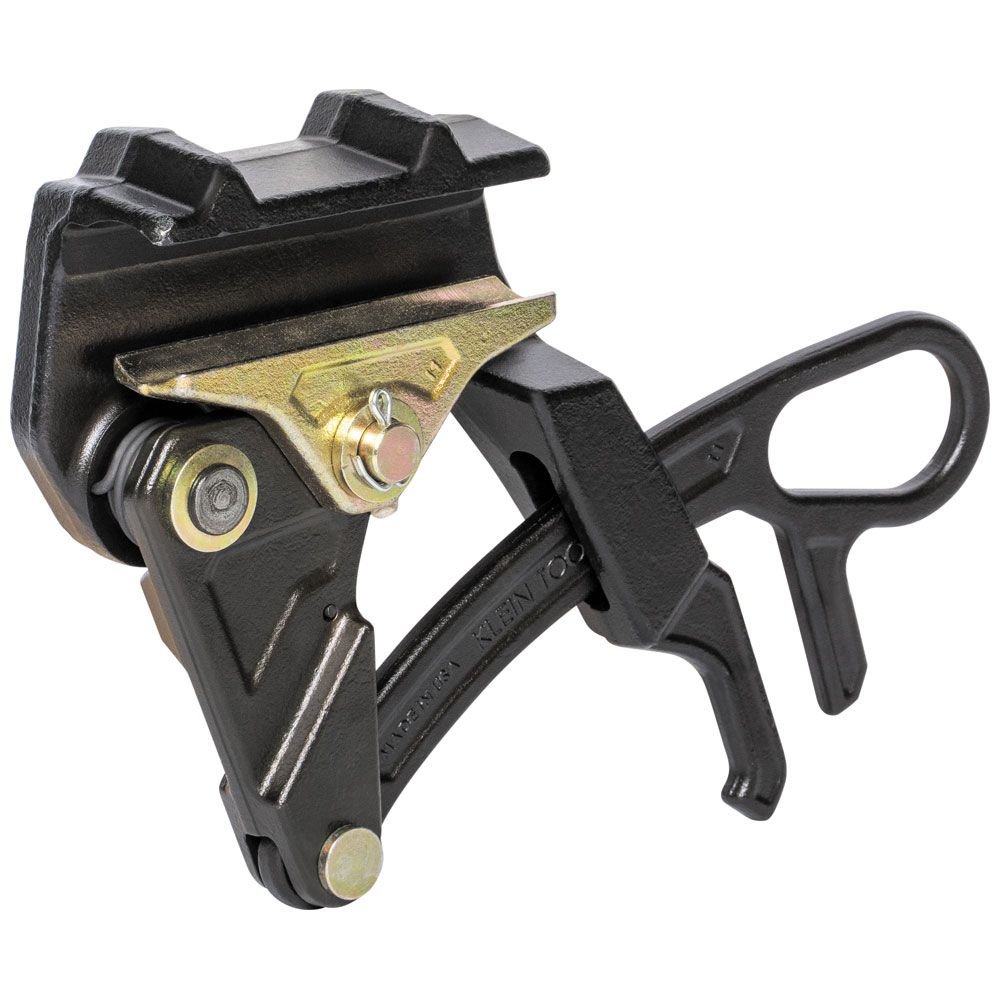

Wide Range Transmission Grip - 16499
$465.26
Orders for this product usually ship in 7-14 business days.
Features:

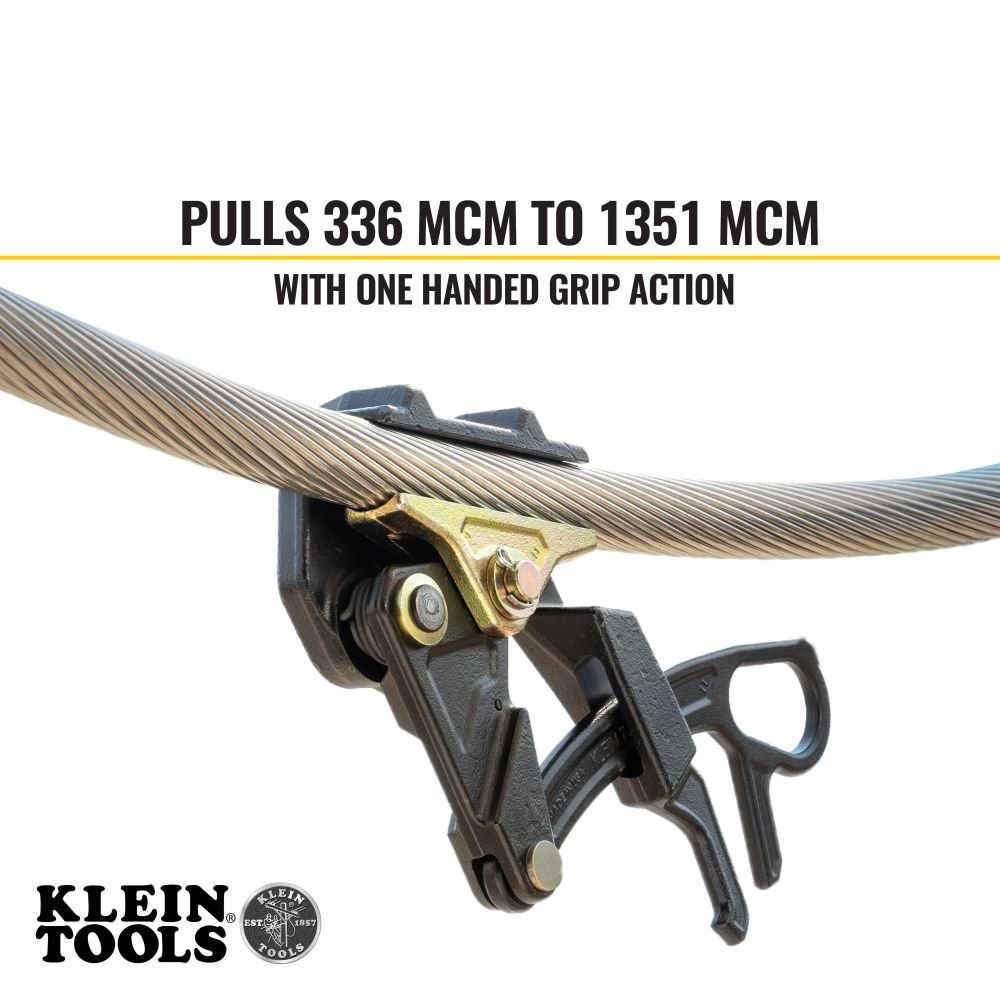

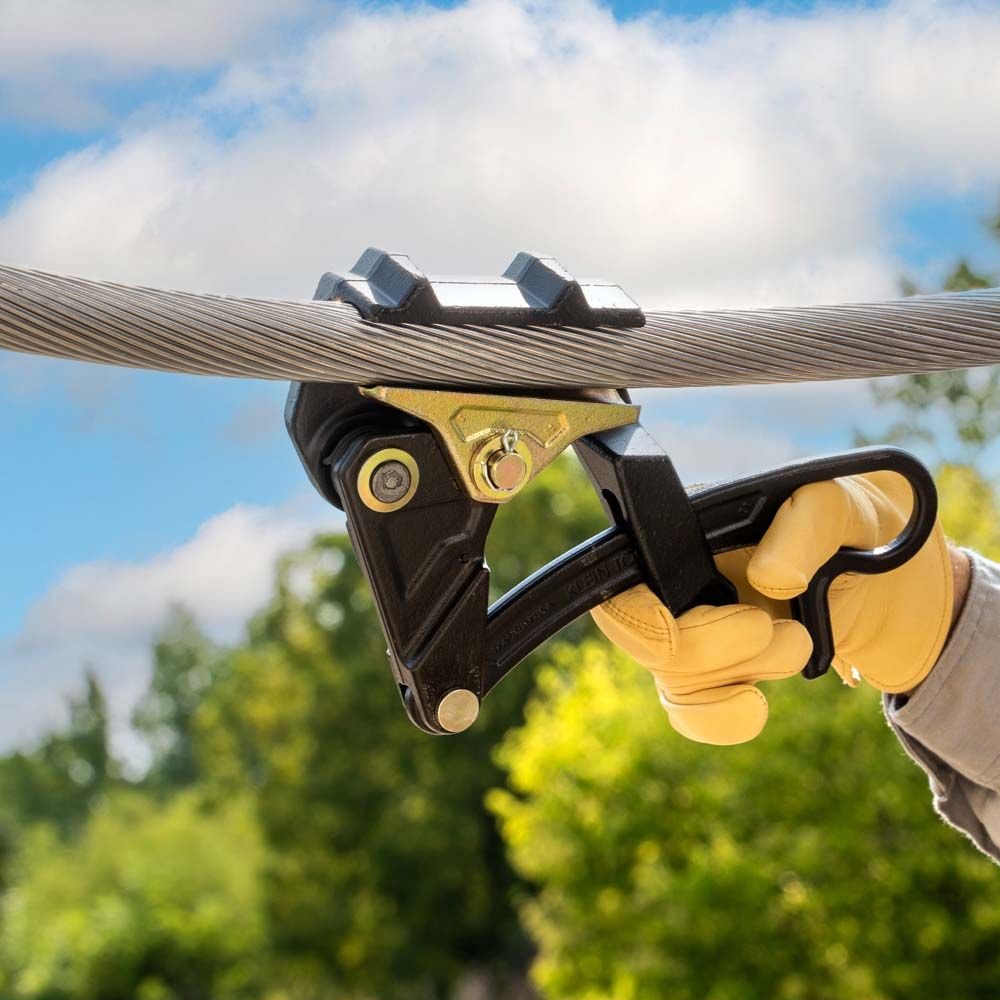

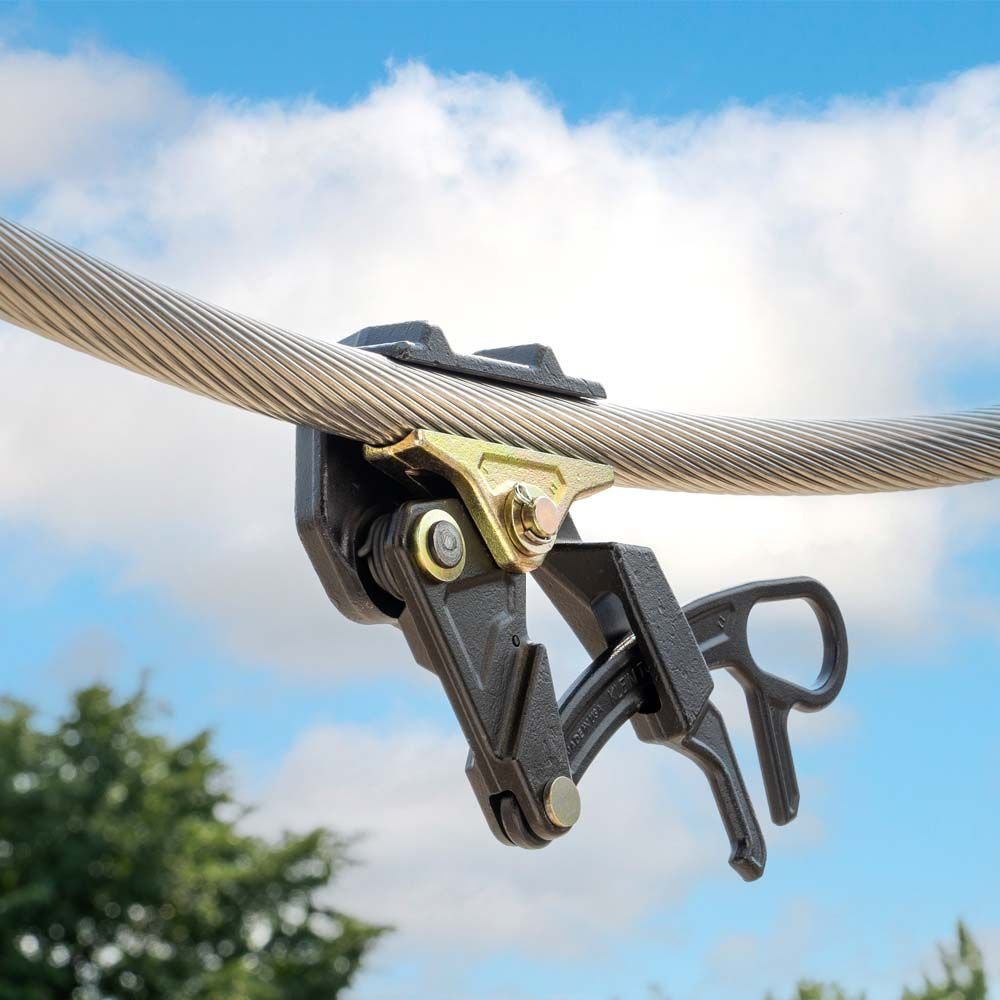

- Securely pulls ACSR, AAC and bare copper cables
- Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
- Fine Sawtooth jaw geometry provides greater grip strength
- Spring closes grip on cable to hold the initial position
- Made in the USA

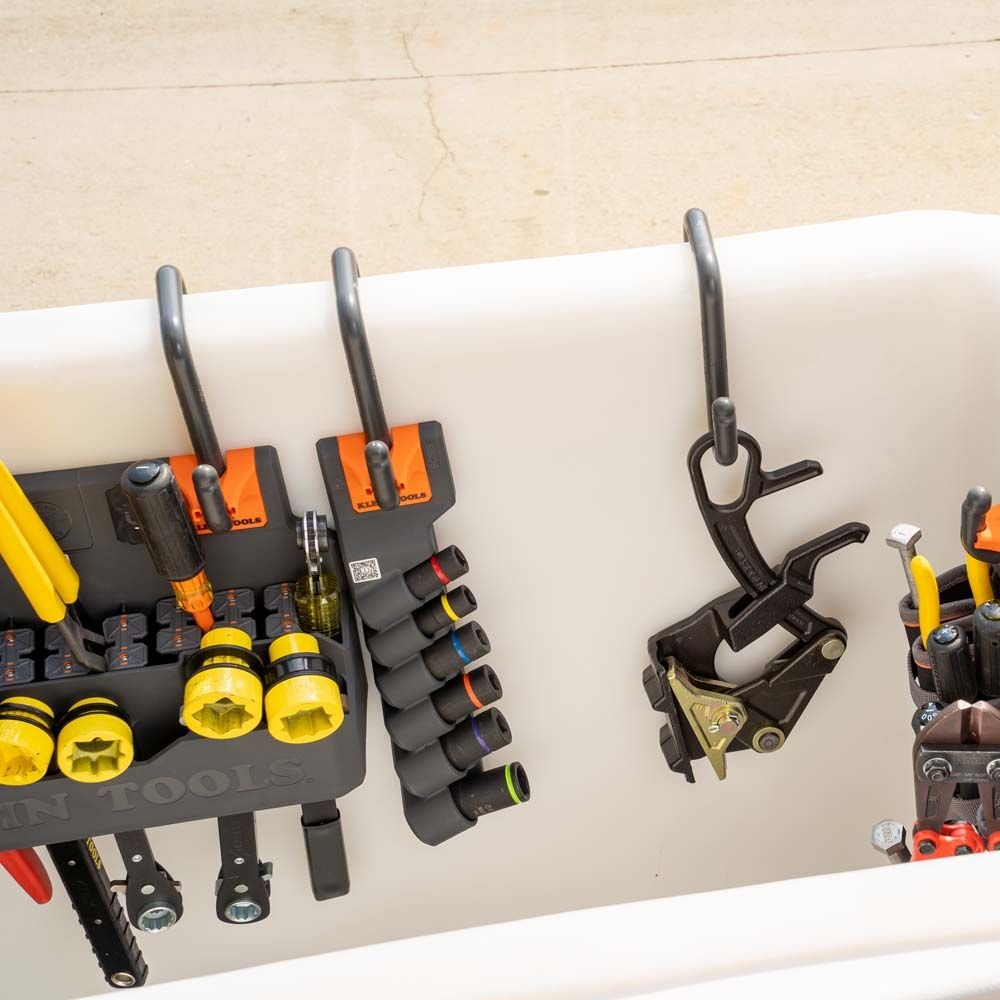

- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 12,000-Pound (5443 kg)
- Patent pending design
Product Specifications:
| Type: | Parallel Jaw Grip |
| Application: | Wire Pulling |

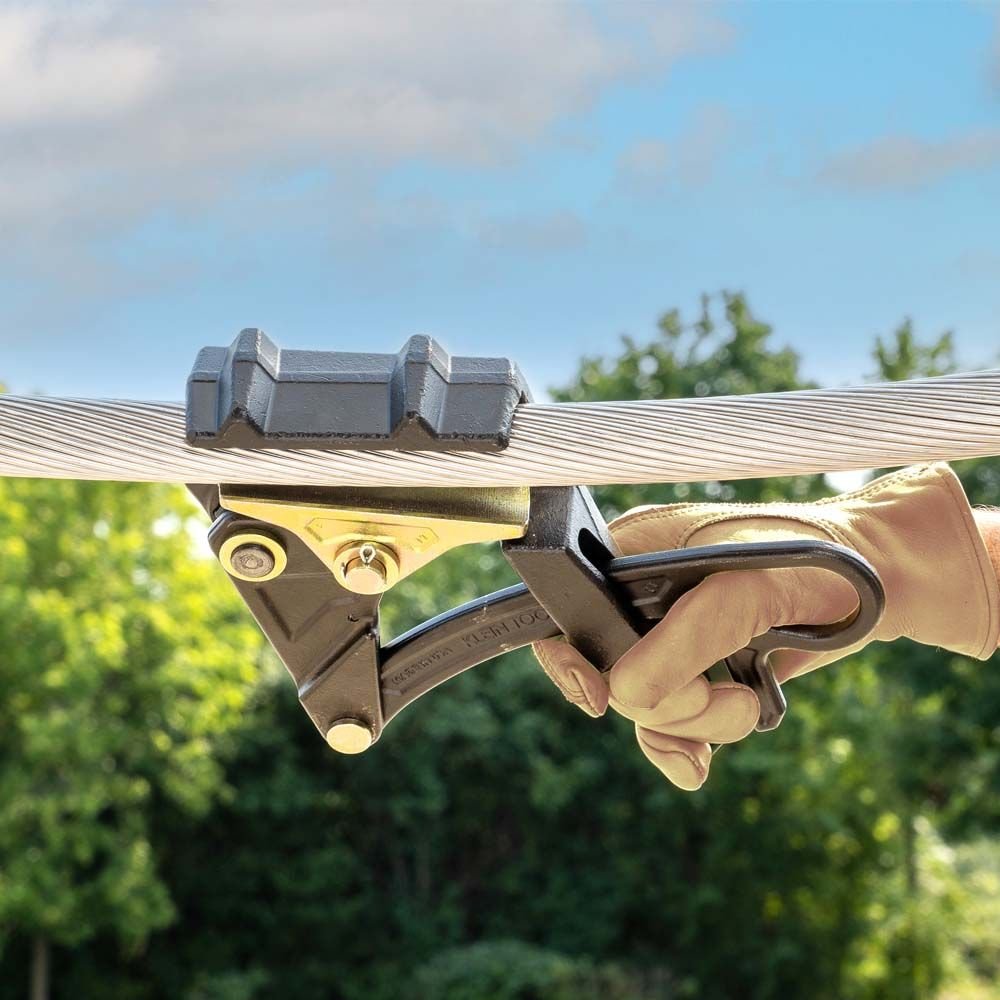

| Special Features: | One-Handed Grip |
| Overall Length: | 13.1" |
| Overall Height: | 8.1" |
| Overall Width: | 2.4" |
| Material: | ACSR, AAC, Bare Copper |
| Cable Type: | Bare Cable |
| Cable Diameter: | 0.68" to 1.42" |
| Hot Latch: | No |
| Swing Latch: | No |
| Spring: | Yes |
| Locking Handle: | Yes |
| Jaw Type: | Round |
| Jaw Length: | 4.85" |
| Maximum Safe Load: | 12,000 lb |
| Weight: | 8.1 lb |
| UPC: | 092644470769 |
Warnings:
- Grips are to be used for temporary installation, not for permanent anchorage.
- When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
